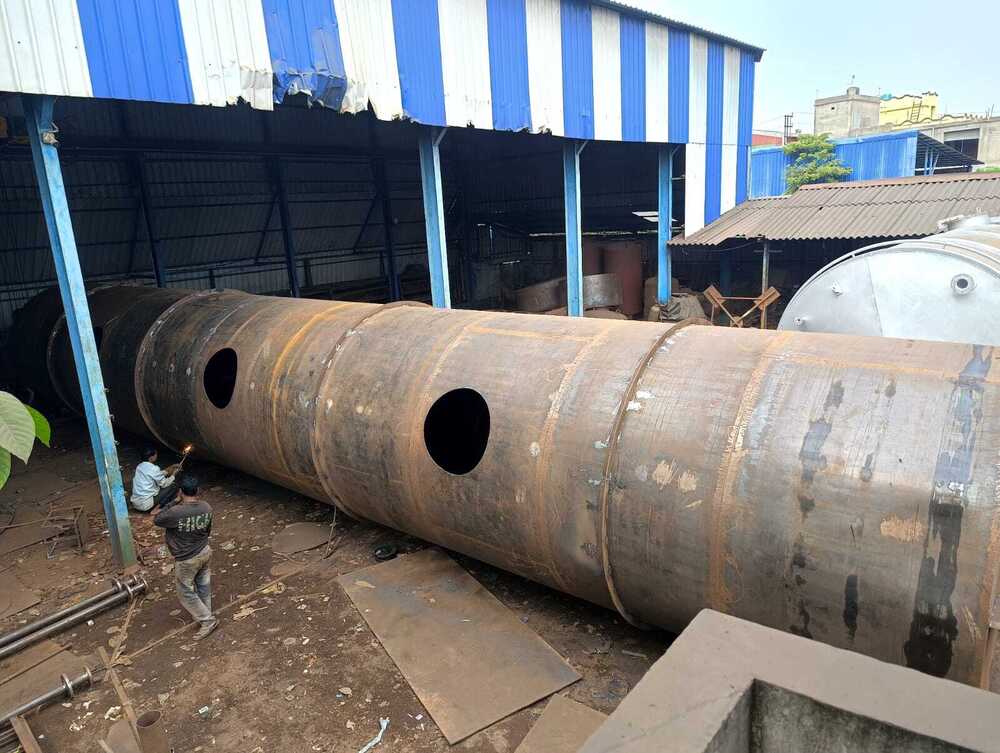

Double wall HSD Oil Storage Tank

About Double wall HSD Oil Storage Tank

Description 90 KL Double Wall HSD Oil Storage Tank

A 90 KL Double Wall HSD Storage Tank is a horizontal cylindrical tank used for storing diesel fuel in bulk quantities for industrial commercial or fuel station applications. It is designed with two concentric walls inner and outer shell to provide enhanced safety against leakage and environmental contamination.

---

Key Features

1 Capacity

Storage capacity 90 KL 90000 litres

---

2 Construction Double Wall

Inner tank Stores diesel liquid tight
Outer tank Secondary containment to prevent leakage
Interstitial space may include leak detection system
Provides extra protection against spills and corrosion

---

3 Material of Construction

Mild Steel MS IS 2062 or Carbon Steel or Stainless Steel SS304 SS316
External surface coated with epoxy or anti corrosion paint

---

4 Shape and Orientation

Generally horizontal cylindrical tank
Installed either Underground tank or Aboveground tank

---

5 Design Standards

Designed as per IS 10987
Complies with PESO Petroleum and Explosives Safety Organization norms

---

6 Typical Dimensions Approx

Diameter about 1600 mm to 2750 mm
Length up to about 16500 mm varies by design

---

7 Standard Accessories and Fittings

Manhole for inspection
Fill pipe or inlet nozzle
Outlet nozzle
Vent pipe or breather valve
Dip pipe for level measurement
Drain nozzle
Level indicator or ATG system
Earthing connections

---

8 Operating Conditions

Pressure Atmospheric tank
Test pressure about 0.5 bar
Temperature range up to about 80 to 90 degree Celsius

---

9 Safety Features

Double wall prevents leakage into soil
Leak detection in interstitial space
Overfill protection system
Venting system to release vapors
Fire and explosion safety compliance

---

10 Applications

Petrol pumps and fuel stations
Industrial diesel storage
Diesel generator fuel supply systems
Oil depots and terminals

---

Advantages of Double Wall Tank

Higher safety compared to single wall tanks
Environmental protection no soil contamination
Reduced need for external bund wall
Long service life due to corrosion protection
Compliance with modern safety regulations

---

Simple Definition

A 90 KL double wall HSD tank is a 90000 litre capacity diesel storage tank with dual layer construction where the outer wall acts as a protective barrier to prevent leakage and ensure safe fuel storage

Superior Leak Detection and Safety

Designed with double walls and a dedicated interstice monitorable space, the tank incorporates a leak detector port, ensuring rapid identification of leaks. Hydrostatic and pneumatic testing, along with strict compliance to PESO and IS standards, ensure enhanced operational safety even in the most demanding environments.


Durable Construction and Corrosion Protection

The tank is fabricated and welded from IS 2062 / ASTM A36 mild steel, with both internal and external surfaces coated in epoxy paint. This comprehensive coating extends the service life of the tank, minimizing maintenance and protecting against rust and chemical degradation regardless of installation location.


Customizable Capacities and Fittings

Ranging from 5,000 to 100,000 liters, the storage tank is tailored to fit specific project needs. It features a 500 mm manhole with optional diameters, API-standard nozzle fittings, and a selection of accessories such as level indicators, ladders, and platforms to support operational convenience.
